Comco-Glass hard fabric

Comco EPP Produkte - Glashartgewebe

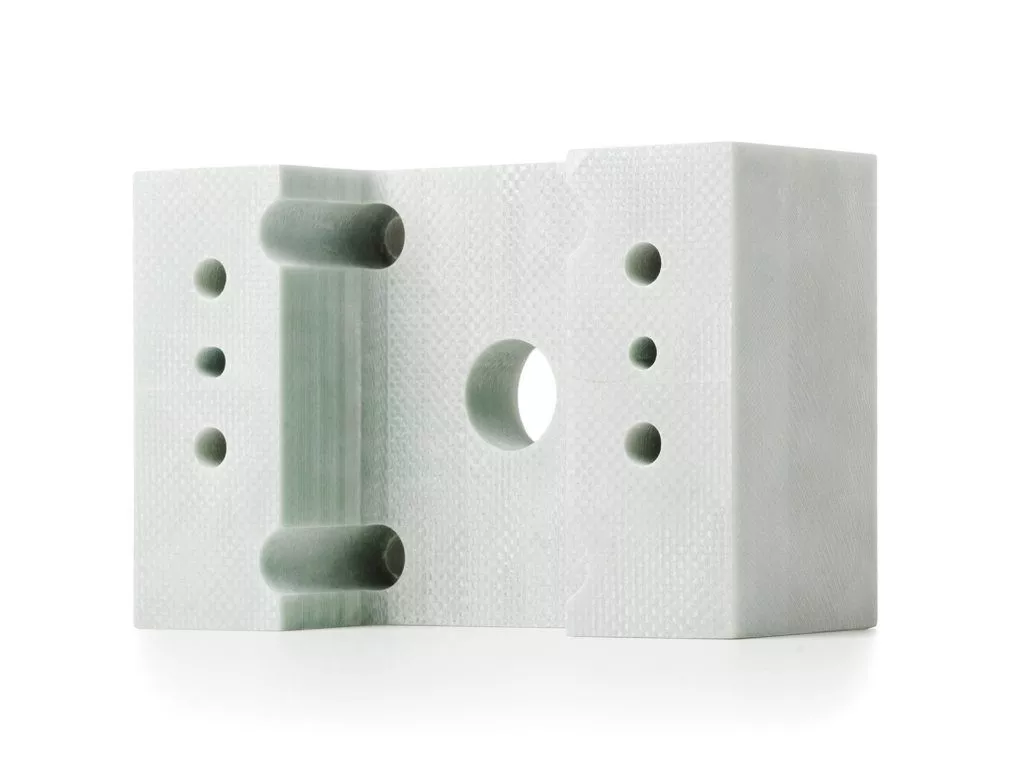

A thermoset material made of glass fabric or glass roving fabric as a carrier material and polyester, epoxy, melamine or silicone resins as binders. This group of materials is characterised by high mechanical strength and excellent electrical insulation properties. These materials are used in many areas such as switchgear construction, traffic engineering, vehicle construction, plant engineering and medical technology.

Standard colours: white, green, red, beige

Material properties:

  1. very good mechanical and dielectric properties
  2. high-voltage applications in oil and air

Application examples:

  • rail holders
  • insulating strips
  • sleeves
  • cable covers

Sheets: Sizes: 2800 x 1220 mm and 2150 x 1220 mm standard (tol. +/-).
Other formats also available.

Thicknesses: 0,2-150 mm

Round tubes: Available in various dimensions.

Download the thermoset semi-finished products catalogue (DE)
Comco-Glass hard fabric – variants
  • Sheets
  • Round Tubes

Comco-EP GC 201 / HGW 2372 / G10
Very good mechanical and dielectric properties at a limit temperature of 130 °C.

Comco-EP GC 202 / HGW 2372.1 / FR4
Very good mechanical and dielectric properties and additionally a flammability class V0 according to UL94.

Comco-EP GC 203 / HGW 2372.4 / G11
Very good mechanical and dielectric properties at a limit temperature of 155 °C.

Comco-EP GC 204 / HGW 2372.2 / FR5
Very good mechanical and dielectric properties at a limit temperature of 155 °C and additionally a flammability class V0 according to UL94.

Comco-EP GC 205 / HGW 2370.4
Made of glass roving fabric with very good mechanical and dielectric properties at a limit temperature of 155 °C.

Comco-EP GC 306
Very good mechanical and dielectric properties with increased tracking resistance.

Comco-EP GC 308
Glass filament fabric for apparatus, electrical and transformer construction with very good dielectric and mechanical properties and an insulation class H (180 °C).

Comco-MF GC 201 / HGW 2275 / G5
Glass melamine fabric, combines good mechanical and electrical properties for applications as a construction element in the medium voltage range, additionally a flammability class V0 according to UL94.

Comco-SI GC 202 / HGW 2572 / G7
Very good electrical properties at a limit temperature of 180 °C in the high-voltage range.

Comco-EP GC 21 / HGW 2375
Pressed round glass tube with very good mechanical and electrical properties for applications up to 130 °C limit temperature.

Comco-EP GC 22 / HGW 2375.4
Pressed round glass tube with very good mechanical and electrical properties for applications up to 155 °C limit temperature.

Comco-SI GC 21 / HGW 2575
Glass silicone round tube with very good mechanical and electrical properties in higher humidity for applications up to 180 °C limit temperature and additionally a flammability class V0 according to UL94.
